The choice of riders who want to go the distance and aren’t willing to be confined to just one surface. Building on our expertise and legacy of endurance excellence, the Roadmachine combines comfort and efficiency into a highly versatile performance road bike that delivers an outstanding riding experience.
With a lightweight carbon frame, the Roadmachine endurance bike is packed with features like full cable integration, downtube storage, and an integrated rear light, making it ready for any challenge. Wide, fast-rolling tires provide a smooth ride across various road surfaces.
Equipped with a full Shimano Ultegra groupset and lightweight tubeless wheels, the Roadmachine ONE features a carefully curated component selection. Our own integrated RSM01 stem and new Endurance Alloy handlebar provide world-class ergonomics, offering the perfect blend of control and comfort for all your road endeavors.
Technology

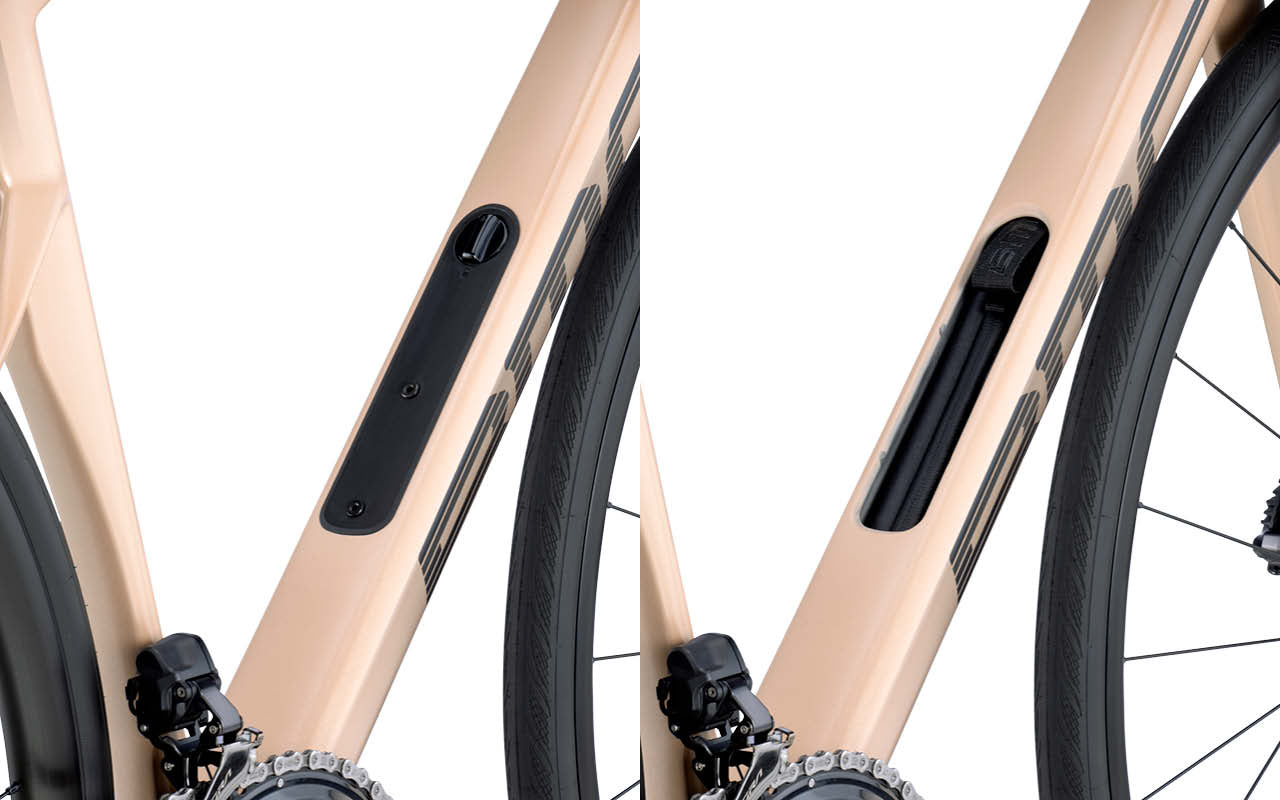

Downtube Storage with Integrated Bottle Cages

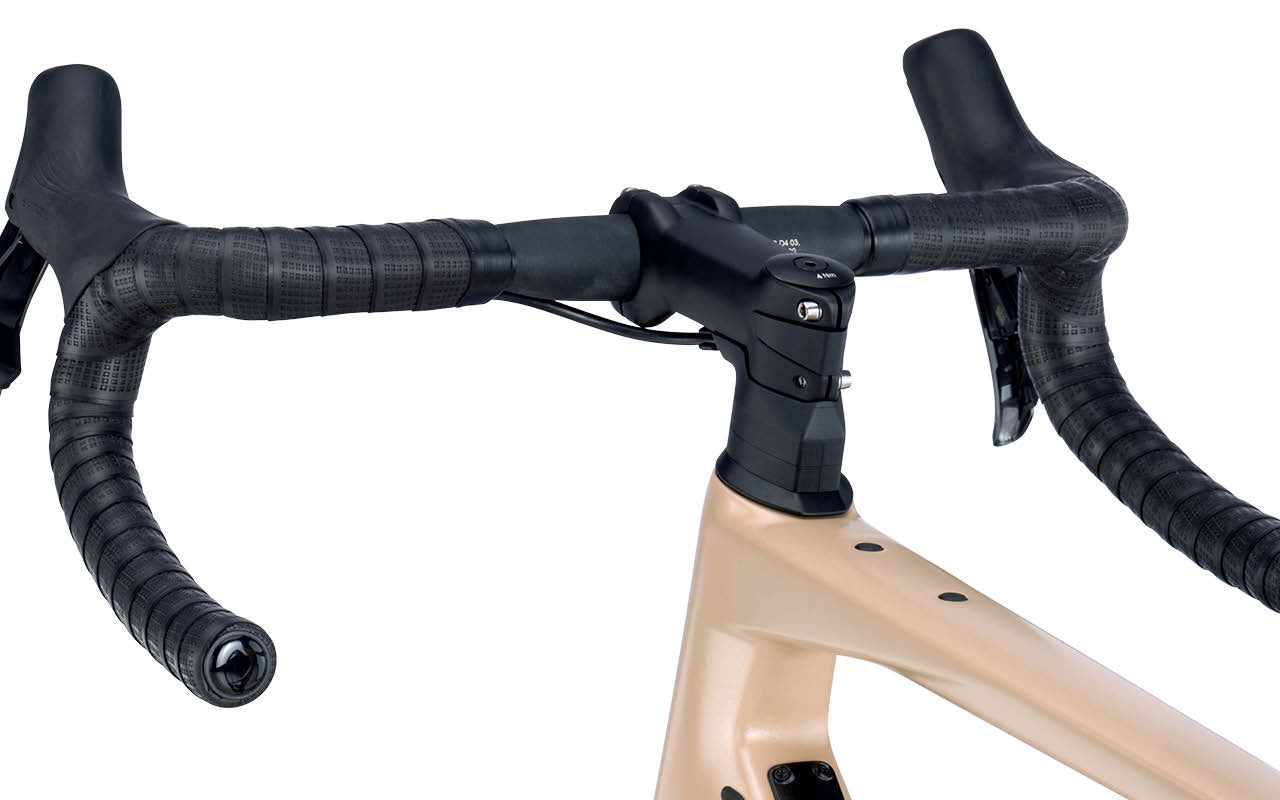

RSM01 for Integrated Cockpit System

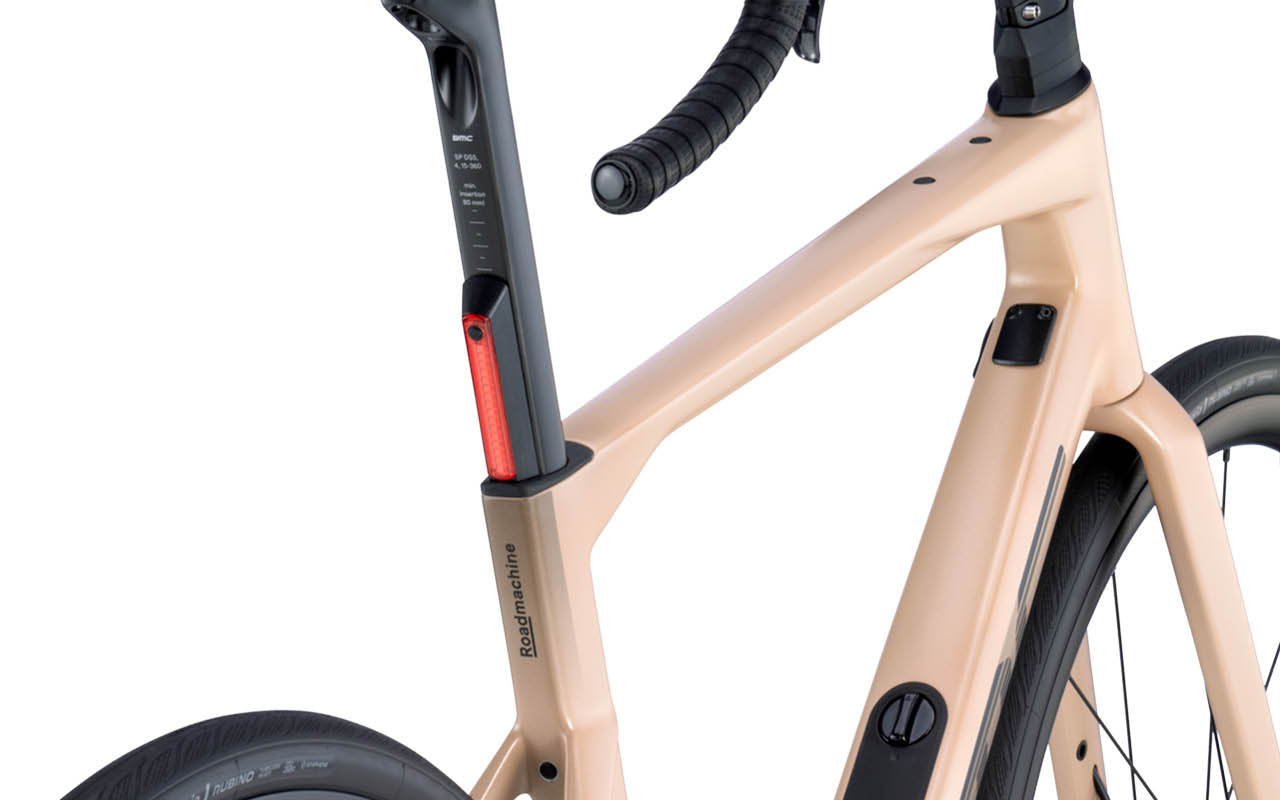

Integrated Rear Light

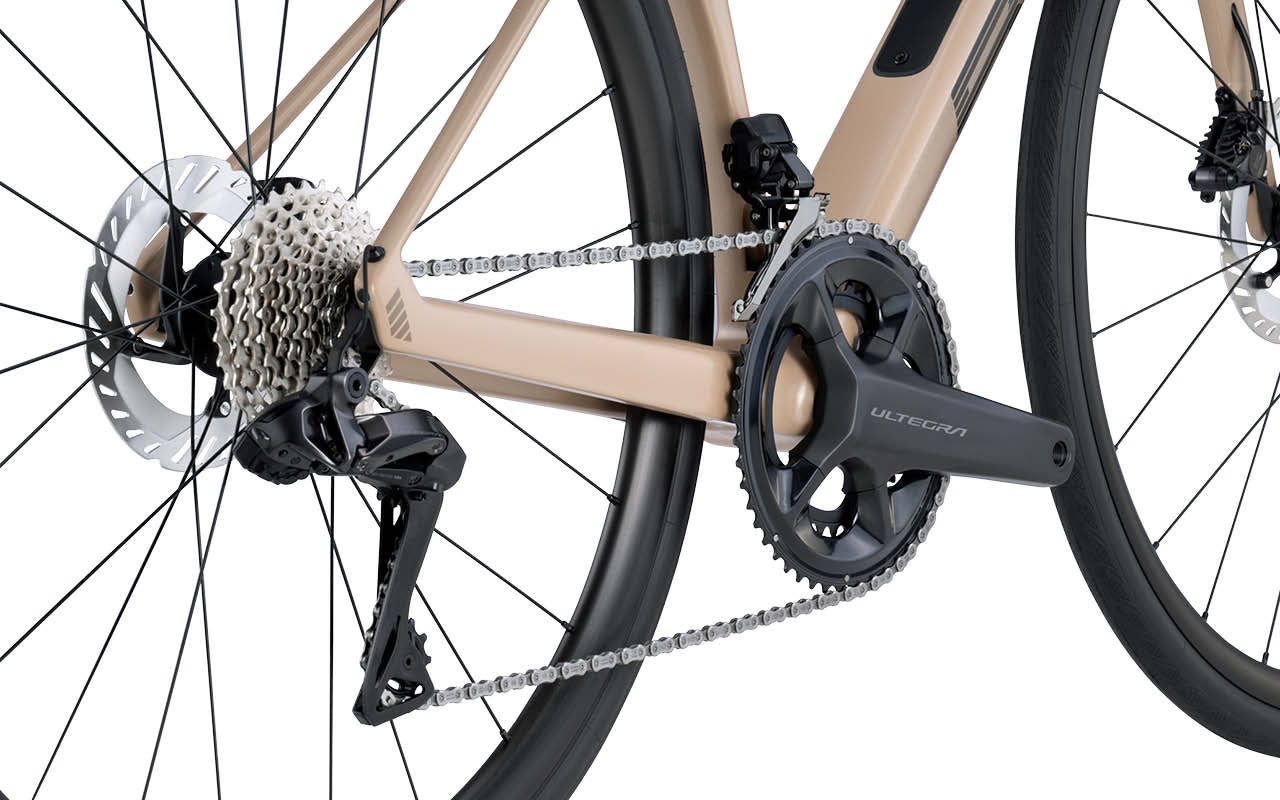

TCC Endurance
Technical Overview
Frameset
Frame:
Roadmachine Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Fender Mounts | Integrated Downtube Storage | Stealth Dropout Design | 12 x 142mm Thru-Axle
Fork:
Roadmachine Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Fender Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle | 50mm offset Size 47-51 | 45mm offset Size 54-61
Cockpit
Stem:
BMC RSM 01 | Integrated Cockpit System Technology
Handlebar:
BMC HB D4 03, 0, 12 | Alloy 6061 | 125mm drop, 70mm reach, 12° flare
Seat
Seatpost:
Roadmachine Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
Saddle:
Selle Italia Model X Superflow | FeC Alloy Rail | 145mm
Drivetrain
Crankset:
SHIMANO Ultegra (FC-R8100)
Chainrings:
50-34T
Cassette:
SHIMANO Ultegra (CS-R8101)
Cassette Size:
11-34T
Chain:
SHIMANO CN-M8100
Front Derailleur:
SHIMANO Ultegra Di2 (FD-R8150)
Rear Derailleur:
SHIMANO Ultegra Di2 (RD-R8150)
Shifters:
SHIMANO Ultegra Di2 (ST-R8170)
Gears:
2 x 12
Bottom Bracket:
SHIMANO Press Fit SM-BB72
Brakes
Brake Levers / Calipers:
SHIMANO Ultegra (BR-R8170)
Rotors:
SHIMANO Ultegra (RT-CL800)
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
AR 27 | Tubeless Ready | 27mm [or] DT SWISS C1850 Spline
Hubs (F/R):
AR 27: CL-712 & RXC-142 Centerlock [or] C1850: DT Swiss Spline
Tires:
Vittoria Rubino V | Tubeless | 32mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Accessories
In the Box:
Integrated Rear Light 25 | Storage Pouch
Additional Information
Tire Clearance:
up to "40mm measured" (frameset clearance) but limited to "34mm measured" by the front derailleur
Weight without Pedals:
8.6kg | Size 54 with all accessories
ASTM Classification:
Level 2
System Weight Limit:
110kg
