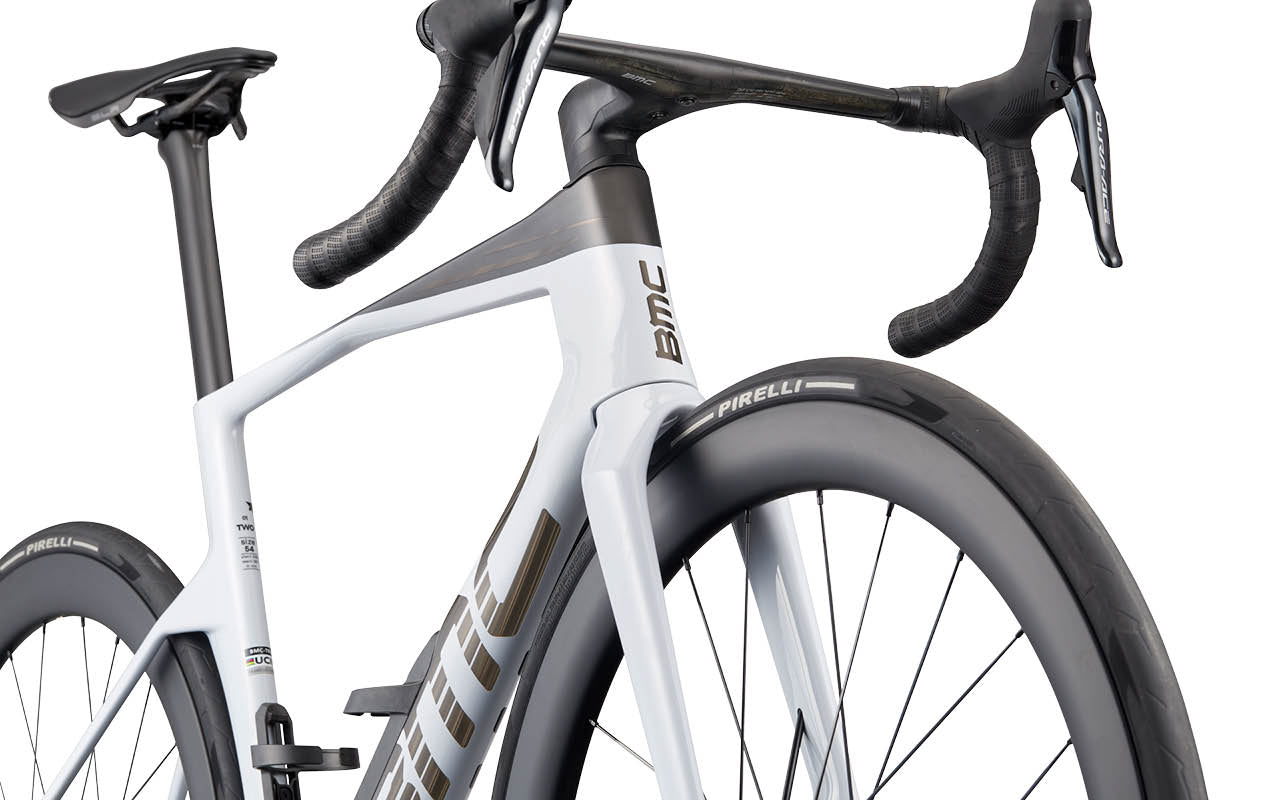

Horquilla Halo

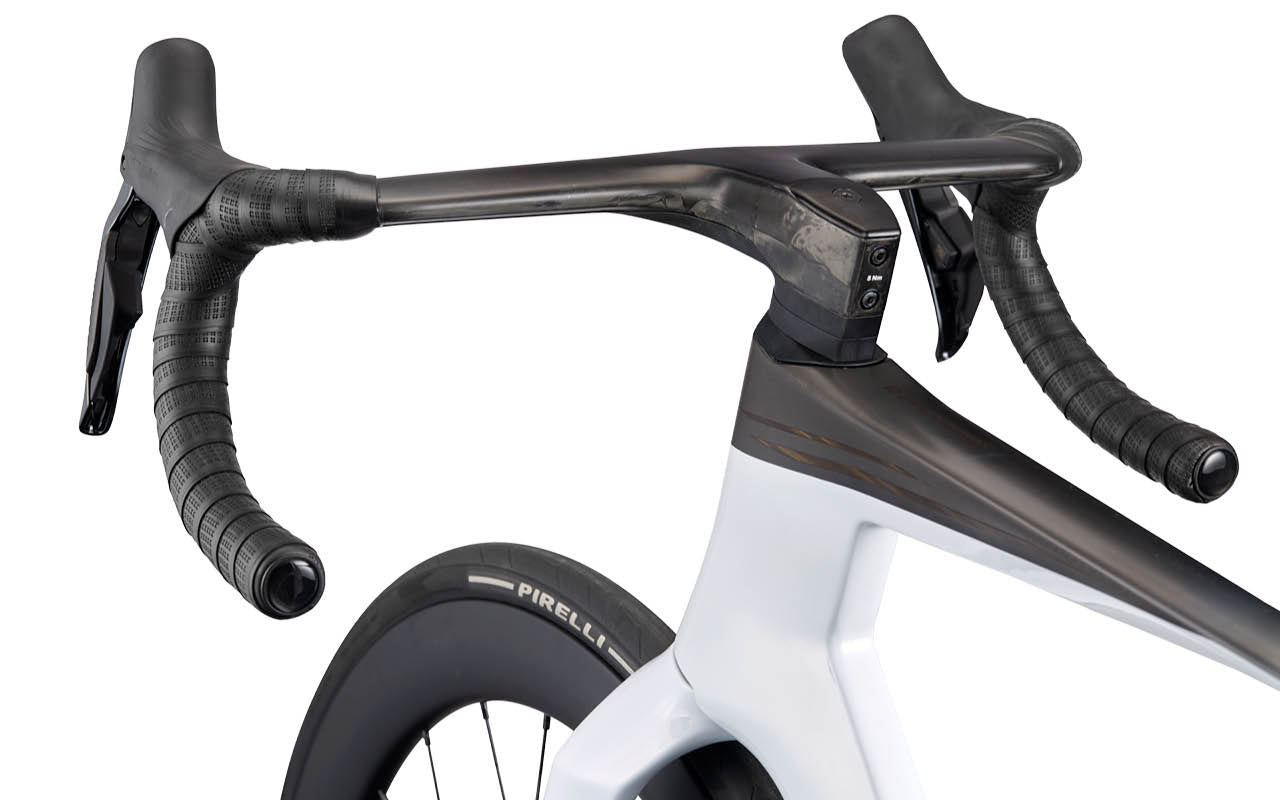

innovationCockpit ICS Carbon Aero
Desarrollado junto al Tudor Pro Cycling Team, este cockpit ICS Aero está hecho por corredores y para corredores: más rígido, más aerodinámico, más cómodo, con mayor capacidad de ajuste y más fácil de montar. Y sí, además tiene muy buena pinta.

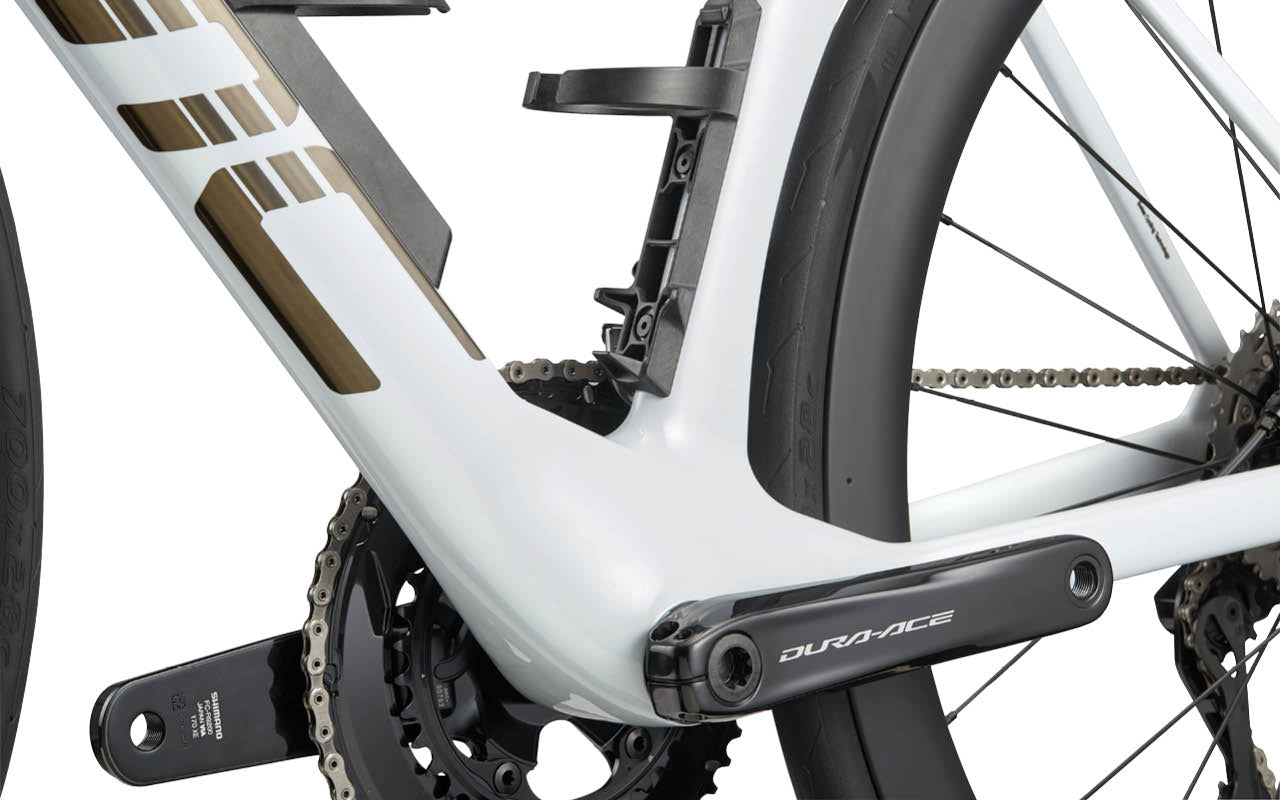

Zona profunda del eje de pedalier
Lo llamamos “eje de pedalier Mariana” porque es el eje de pedalier más profundo que hemos desarrollado nunca en una bicicleta de carretera. ¿El motivo? Su mayor superficie permite lograr el flujo de aire más limpio posible. Aprobado por la UCI.

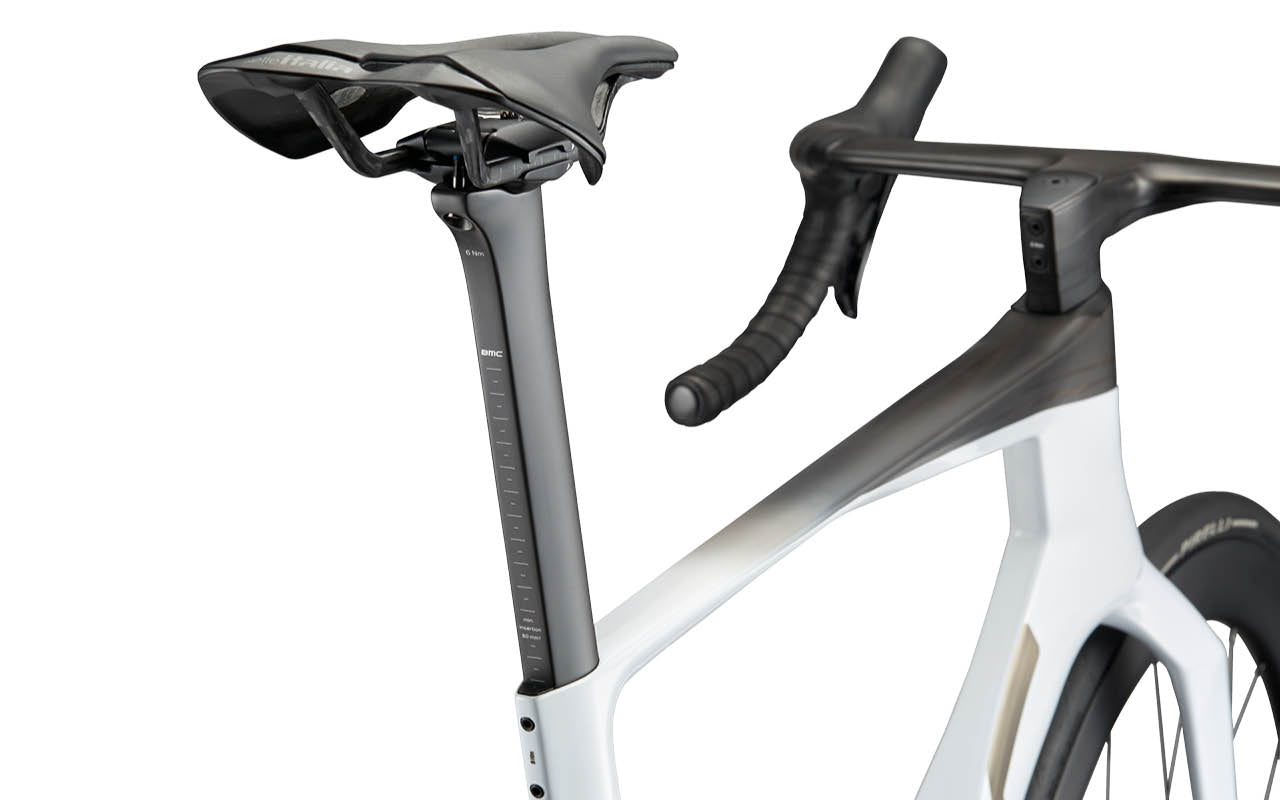

Tija de sillín Aero
Tija de sillín más estrecha, de mayor perfil, más absorbente y ligera, con una abrazadera más accesible y fácil de mantener. Compatible con soporte de dorsal integrado, es la opción más inteligente para el día de carrera.
Descripción técnica
Cuadro
Cuadro:
Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
Horquilla:
Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Cockpit
Manillar:
ICS Carbon Aero Gen 2 | One-Piece Full Carbon Cockpit | 135mm drop, 81mm reach, 12° flare
Puños:
BMC Tacky 3mm
Seat
Tija de Sillín:
Teammachine R 01 | 01 Premium Carbon Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Sillín:
Selle Italia SLR Carbon | Advanced Carbon Rails | 145mm
Transmisión
Platos y Bielas:
SHIMANO Dura Ace FC-R9200
Platos:
52-36T
Potenciómetro:
4iiii Precision Pro Power Meter (Dual Sided)
Cassette:
SHIMANO Dura Ace CS-R9200
Tamaño del cassette:
11-34T
Cadena:
SHIMANO CN-M9100
Desviador Delantero:
SHIMANO Dura Ace Di2 FD-R9250
Cambio Trasero:
SHIMANO Dura Ace Di2 RD-R9250
Manetas de Cambio:
SHIMANO Dura Ace Di2 ST-R9270
Marchas:
2 x 12
Pedalier:
SHIMANO Dura Ace Press-Fit Bottom Bracket (SM-BB92-41B)
Frenos
Pinzas de Freno:
SHIMANO Dura Ace BR-R9270
Discos:
SHIMANO Dura Ace (RT-CL900)
Tamaño del disco:
160 / 160mm
Ruedas
Llantas:
CR 50 SL Carbon | Tubeless Ready | 50mm
Bujes:
TXC-812 & TXC-240A Center Lock
Neumáticos:
Pirelli P Zero Race TLR | Tubeless | 28mm
Información Tubeless:
Tubeless Rim | Tubeless Tires
Accesorios
En la caja:
Aerocore Bottle Cages | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers
Información adicional
Paso de rueda:
30mm measured tire
Peso sin pedales:
7.3kg | Size 54 as pictured with all accessories
Clasificación ASTM:
Level 1
Límite de peso del sistema:
110kg
Reglamento relativo a la seguridad general de los productos (GPSR):
Instrucciones de seguridad GPSR (UE)
Persona responsable según el GPSR (UE)
Geometría
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 368 | 378 | 387 | 393 | 402 | 409 |
| Stack | 504 | 528 | 548 | 563 | 582 | 608 |
| Bar Drop | 135 | 135 | 135 | 135 | 135 | 135 |
| Bar Reach | 81 | 81 | 81 | 81 | 81 | 81 |
| Bar Width | 370/420 | 370/420 | 390/440 | 390/440 | 390/440 | 390/440 |
| BB Drop | 69 | 69 | 69 | 69 | 69 | 69 |
| Crank Length | 165 | 167.5 | 170 | 170 | 172.5 | 172.5 |
| Fork Length | 367 | 367 | 367 | 367 | 367 | 367 |
| Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center | 568 | 586 | 589 | 599 | 614 | 630 |
| Head Tube | 108 | 133 | 149 | 165 | 184 | 211 |
| Head Tube Angle | 71.5° | 71.5° | 72.3° | 72.3° | 72.3° | 72.3° |
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Seat Angle | 74° | 74° | 73.5° | 73.5° | 73° | 73° |
| Seat Tube | 418 | 463 | 499 | 519 | 541 | 570 |
| Seatpost Length | 335 | 335 | 385 | 385 | 405 | 405 |
| Seatpost Offset | 0 | 0 | 10 | 10 | 10 | 10 |
| Standover Height | 721 | 755 | 781 | 799 | 813 | 836 |
| Stem Angle | -17° | -17° | -17° | -17° | -17° | -17° |
| Stem Length | 80 | 90 | 90 | 100 | 110 | 110 |
| Top Tube | 515 | 532 | 552 | 562 | 582 | 598 |
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 968 | 986 | 989 | 999 | 1015 | 1030 |
